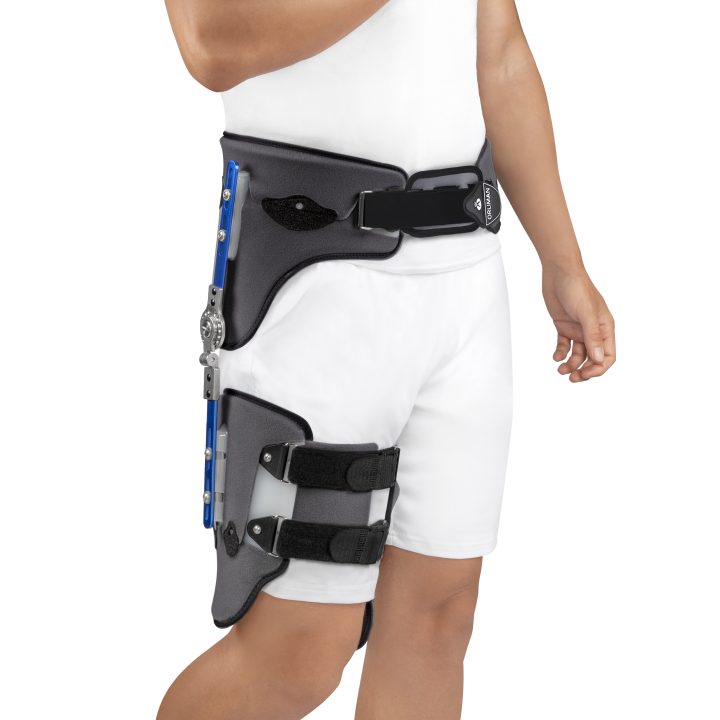

HIP STABILIZING ORTHOSIS
Modular hip stabilizing orthosis that can be used interchangeably for the left or right hip. Made of highdensity polyethylene. Comprised of a pelvic band and thigh support (both twin shell), connected by a joint that adjusts flexo-extension from 0º to 80º in increments of 20º, and abduction, in the 0º, 20º and 40º positions. The thigh support allows you to modify the rotation and height of the condyle pad for a perfect fit. Both the pelvic band and the thigh support slide along the length of the joint splints in order to adapt them to the patient’s height. The thigh support straps are made up of two velcro straps, and the pelvic band is adjusted using a Velcro belt. The interior foam and external velour lining cover the plastic of the orthosis, protecting the patient from possible chafing from its rigid parts. These fabrics are easy to remove and wash, allowing for proper hygiene of the orthosis.
Indications:Post-op stabilization after full hip replacement. Complications after hip arthroplasty or dislocation. Post-reduction of dislocated or unstable prosthesis. After femoral head resection. Fractures. Poor bone quality (osteoporosis).
WAIST CONTOUR THIGH CONTOUR SIDE SIZE
60-102 40-54 RIGHT 11D
60-102 50-64 RIGHT 12D
60-102 40-54 LEFT 11I
60-102 50-64 LEFT 12I
90-132 40-54 RIGHT 21D
90-132 50-64 RIGHT 22D
90-132 40-54 LEFT 21I
90-132 50-64 LEFT 22I
